Wireless Security
Rob Flickenger
Why is security a problem?
- Wireless is a shared medium
- Attackers are relatively anonymous
- End users are poorly educated
- Denial-of-service is very simple
- Automated malicious attacks are increasingly complex
- Tools are freely available

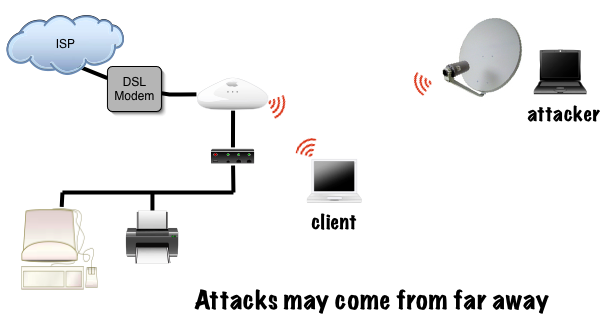

Long distance attack

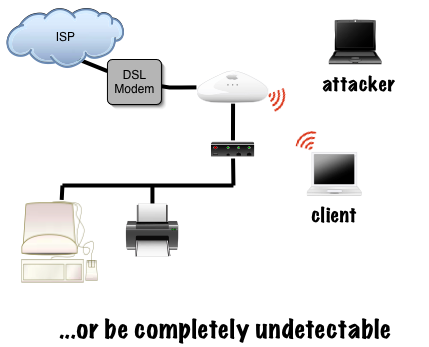

Invisible intruder
Security risks
Who creates security problems?
- Unintentional users
- "War Drivers"
- Rogue access points
- Eavesdroppers (personal and corporate spies)
- Virus-infected computers
- Malicious users

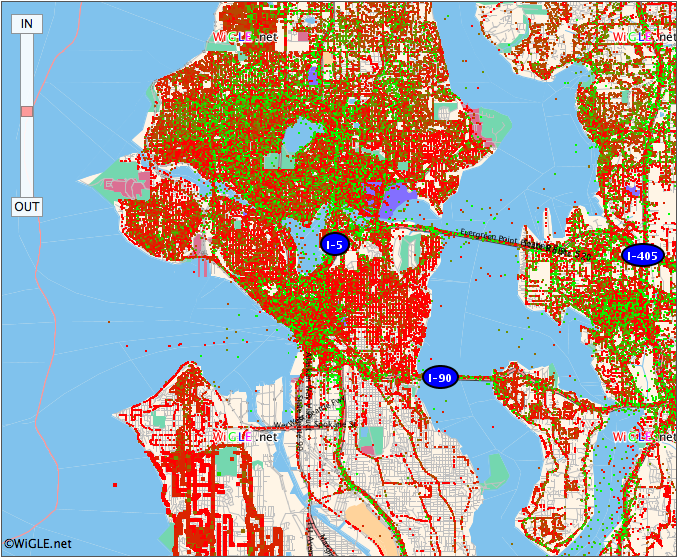

WiGLE.net
WiGLE: Wireless Geographic Logging Engine
Protecting your network
Basic tools you can use to protect your wireless networks (by increasing protection and complexity):
- "Closed" networks
- MAC filtering
- WEP encryption
- WPA encryption
- Strong end-to-end encryption
Closed networks
By turning off beacons, you can prevent your network from being shown in
network scan utilities.
Advantages: Standard security feature supported by virtually all access points.
Disadvantages: "Closed" networks are not easily found in a site survey, and are easily found by passive monitoring tools.
MAC filtering
A MAC filter may be applied to an access point to control which devices may be permitted to associate.
Advantages: Standard security feature supported by virtually all access points.
Disadvantages: MAC tables are inconvenient to maintain. Also, MAC addresses are transmitted in the clear (even when using WEP encryption), and are easily copied and reused.
Encryption basics
- Encrypting information is easy
- Key distribution is difficult
- Unique identification is a challenge with wireless
- Public key cryptography solves many (but not all) problems
- MITM still possible if used without a PKI
- No PKI is completely secure
Microsoft / Verisign PKI exploit
"In late January 2001, VeriSign erroneously issued two Class 3 code-signing certificates to someone falsely claiming to represent Microsoft. The certificates were issued in Microsoft's name, specifically "Microsoft Corporation". After issuing the certificates, a routine VeriSign audit uncovered the error in mid-March, about 6 weeks later."
http://amug.org/~glguerin/opinion/revocation.html
Debain PRNG flaw
On 13 May 2008, the Debain project announced a fatal flaw in the
pseudo-random number generator used by its OpenSSL package.
As a result, all SSL, SSH, and OpenVPN keys generated on Debian-based
systems (Ubuntu, Kubuntu, etc) between September 2006 and May 13th, 2008 may
be compromised.
http://metasploit.com/users/hdm/tools/debian-openssl/
Do you know what random means?
WEP encryption
Part of the 802.11 standard, Wired Equivalent Privacy provides encryption at layer two.
Advantages: Standard security feature supported by virtually all access points.
Disadvantages: Shared key, numerous security flaws, long-term maintenance impossible on large networks.
WEP problems in detail
- Problems are not with RC4, but with the WEP implementation
- Incompatible key lengths: 40-bit vs. 64-bit vs. 104-bit vs. 128-bit ...
- IV reuse (2^24, or 16 million possible IVs)
- Weak IVs
- Shared key management is difficult
- Offline attacks are simple
Advanced 802.11 features
- 802.1x: EAP-MD5, Cisco LEAP, Microsoft EAP-TLS
- Fast WEP re-keying
- WPA (Wi-Fi Protected Access)
WPA
- TKIP + 802.1x == WPA (pre-802.11i)
- 802.1x can provide mutual authentication of client and AP
- EAP-TLS, EAP-TTLS, LEAP, PEAP, EAP-SIM
- Administration is moderately difficult, but possible
- AES + 802.1x == WPA2 (802.11i)
- Very good for private (enterprise) networks, of limited use on public networks
WPA encryption
While WPA2 (802.11i) is rapidly becoming the standard for protected Wi-Fi access.
Advantages: Significantly stronger protection than WEP, open standard.
Disadvantages: Vendor interoperability problems, complex configuration, protection only on layer two.
WPA-PSK
PSK stands for Pre-Shared Key. The intent behind WPA-PSK was to provide
a simple WPA solution comparable to WEP, but more secure.
- Pass phrase of 8 to 64 characters
- While WPA-PSK is stronger than WEP, problems still exist
- Church of WiFi's WPA-PSK Rainbow Tables: 172,000 common passwords * 1,000 common SSIDs. 8GB tables on two DVDs.
- http://www.renderlab.net/projects/WPA-tables/
Strong encryption software
Good end-to-end security software should provide strong Authentication, Encryption, and Key Management.
Examples include:
- SSH
- SSL
- IPSec
- OpenVPN
- PPTP

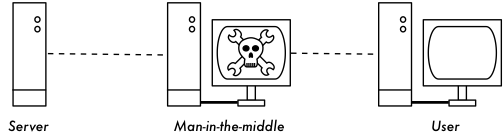

Man-in-the-middle
The main problem with implementing encryption at layer two is the possibility of man-in-the-middle (MITM) attacks.

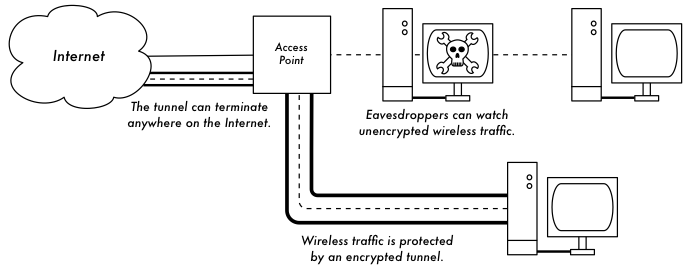

Encrypted tunnels
End-to-end encryption provides protection all the way to the remote end of the connection.

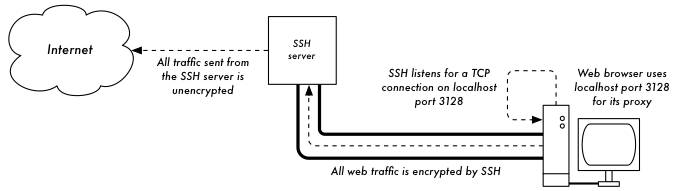

SSH
In addition to providing simple shell access, SSH is a general-purpose TCP tunneling tool.
OpenVPN
OpenVPN is a strong cross-platform VPN solution.
- Windows Vista/XP/2000, Linux, BSD, Mac OS X support
- SSL/TLS encryption
- VPN for layer 2 or layer 3 traffic
Security tools
There are hundreds of free tools that will show you lots of information about your network:
- Network ESSID scanners
- Wireless protocol analyzers
- Port scanners / penetration testing tools
- Packet sniffers
- Packet creation tools
- Encryption crackers

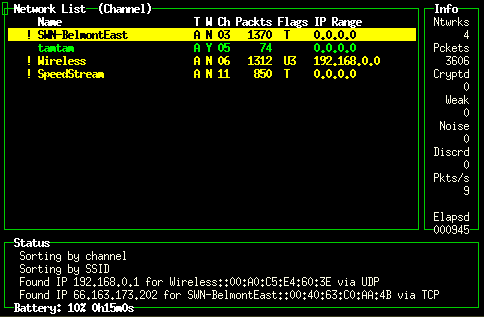

Kismet: networks

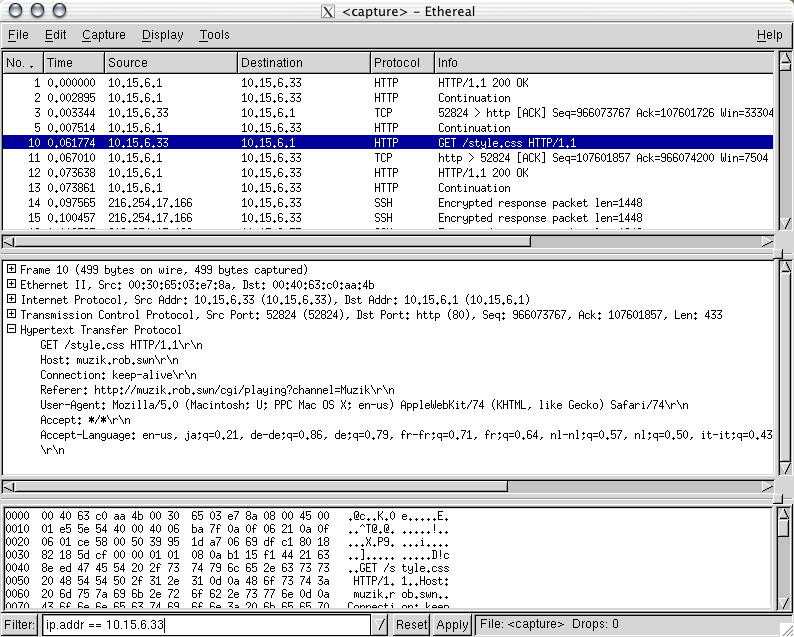

Wireshark: http decode

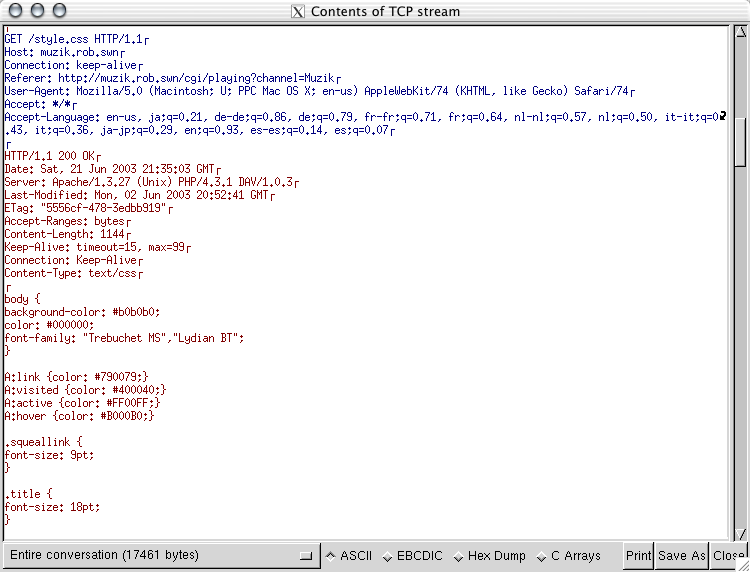

Wireshark: TCP session

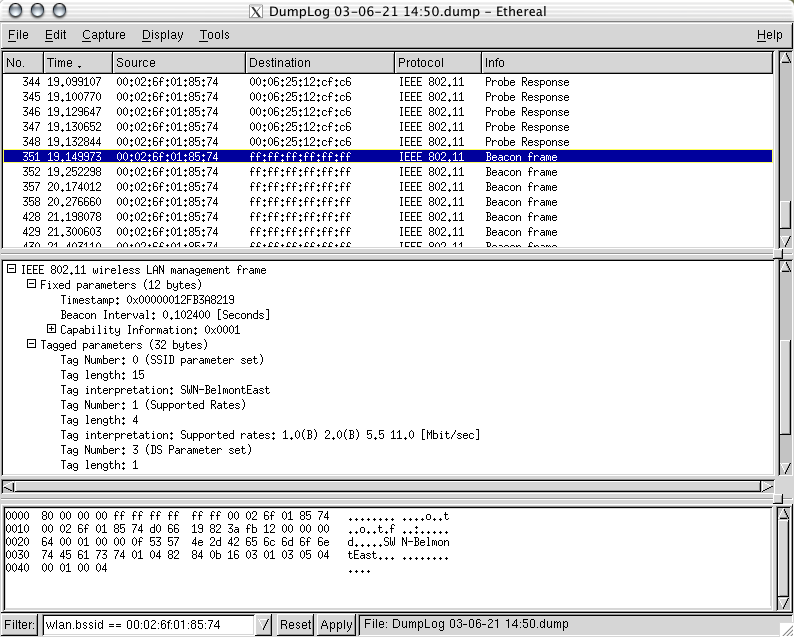

Wireshark and Kismet: beacons

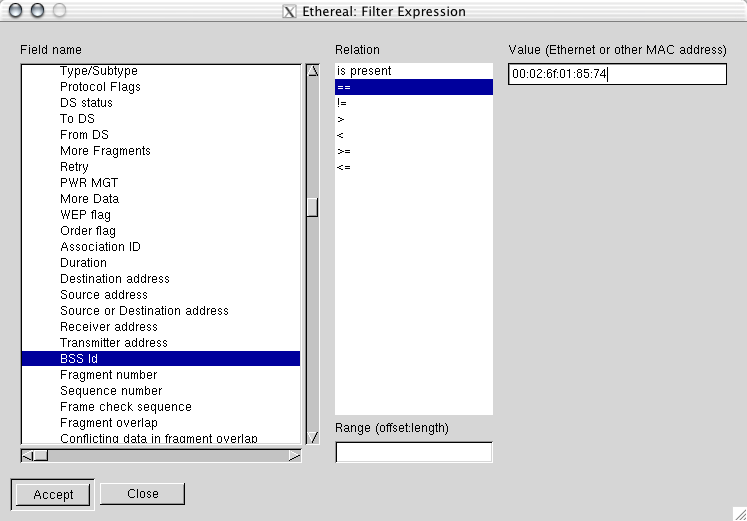

Wireshark and Kismet: filters

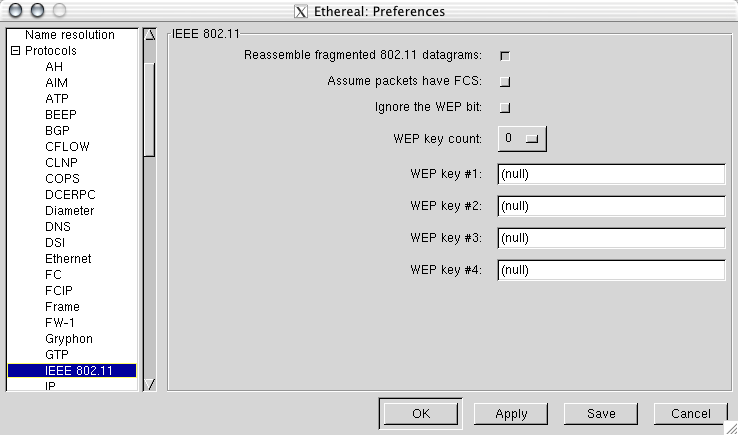

Wireshark and Kismet: WEP

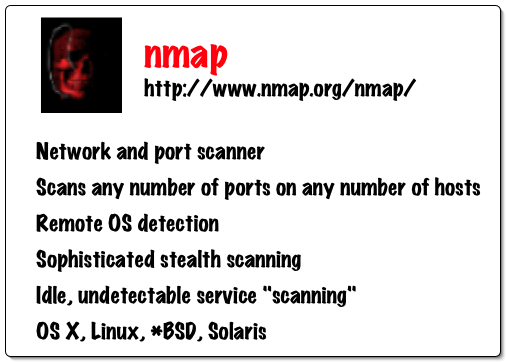

nmap
Etherpeg

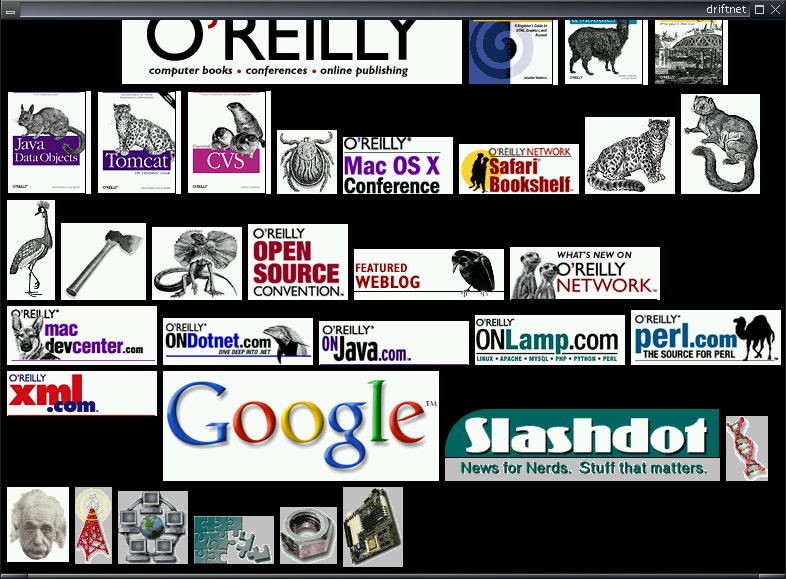

Driftnet

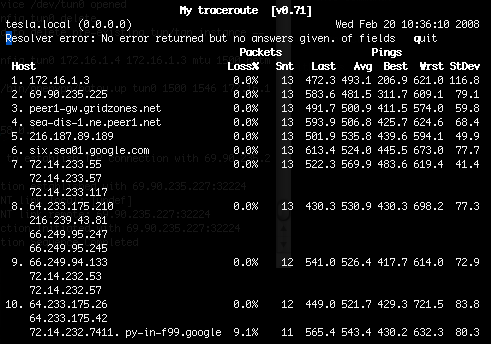

mtr

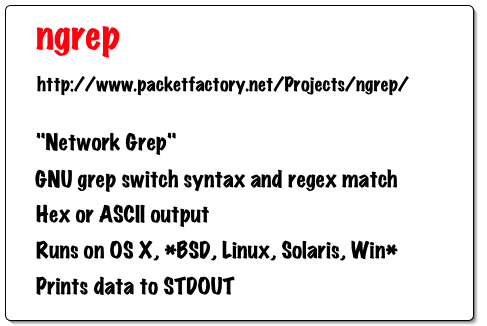

ngrep
ettercap
airsnort

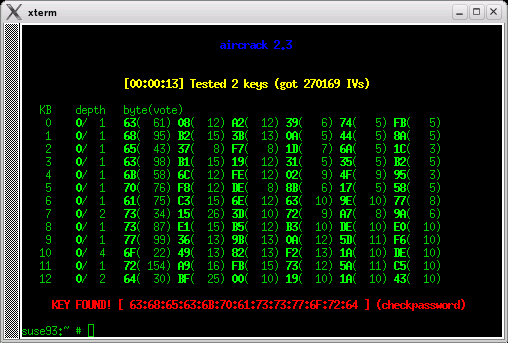

Aircrack-ng
Cracks WEP & WPA-PSK

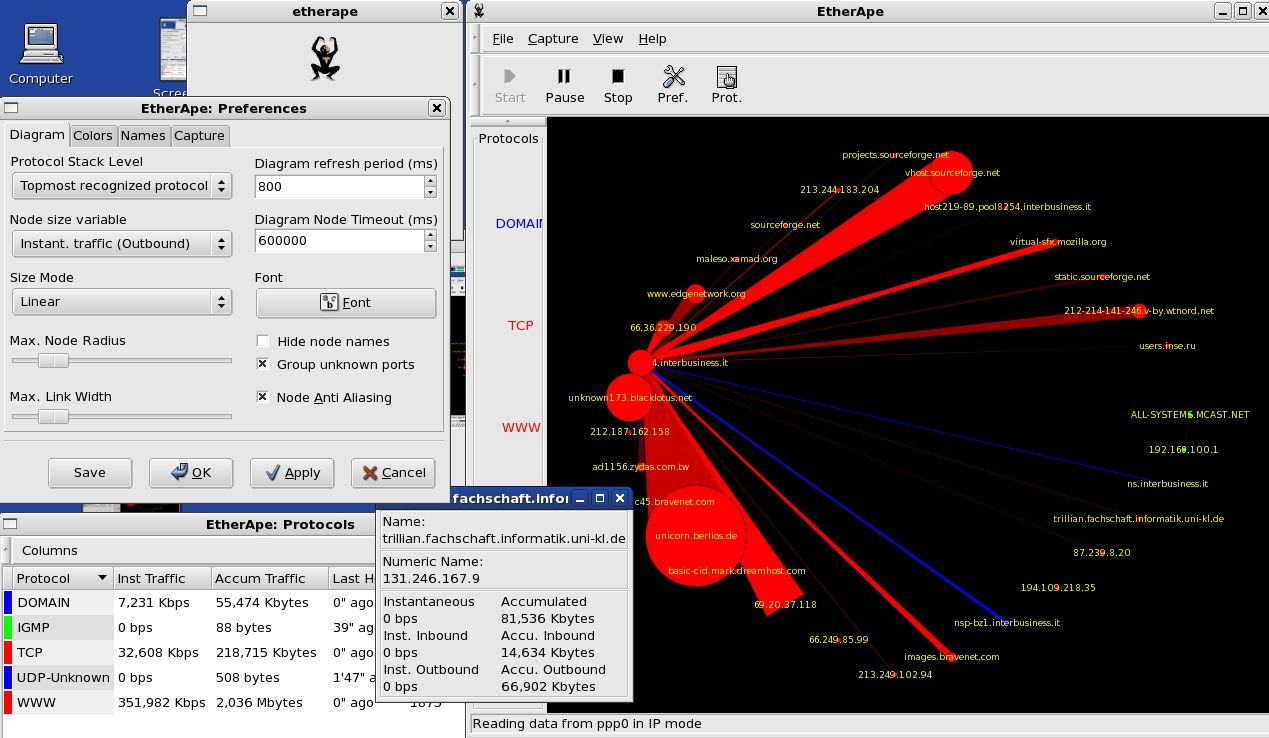

EtherApe

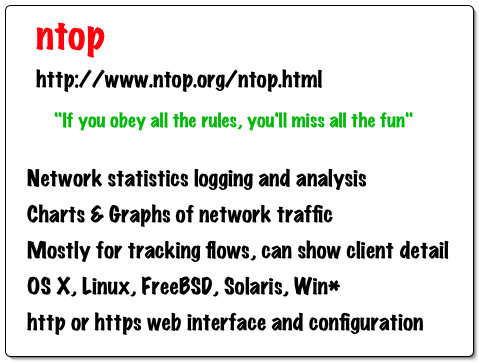

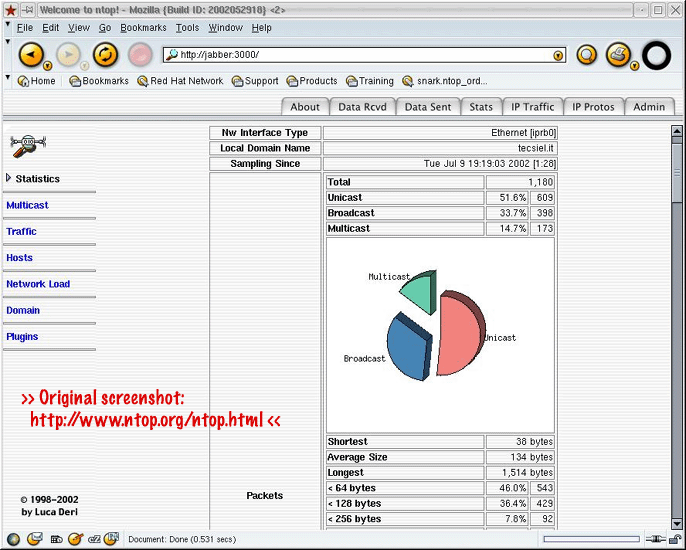

ntop
ntop: flows
ntop: info
In Summary
Using the proper tools, you can see precisely what is happening on your network.
By using strong end-to-end encryption, you can prevent others from using these tools to attack your networks.
The use of strong end-to-end encryption can also make it safe to use completely untrusted networks (from a public wireless AP all the way to the Internet).
Credits
Portions of this talk were adapted from Wireless Networking in the
Developing World, http://wndw.net/
